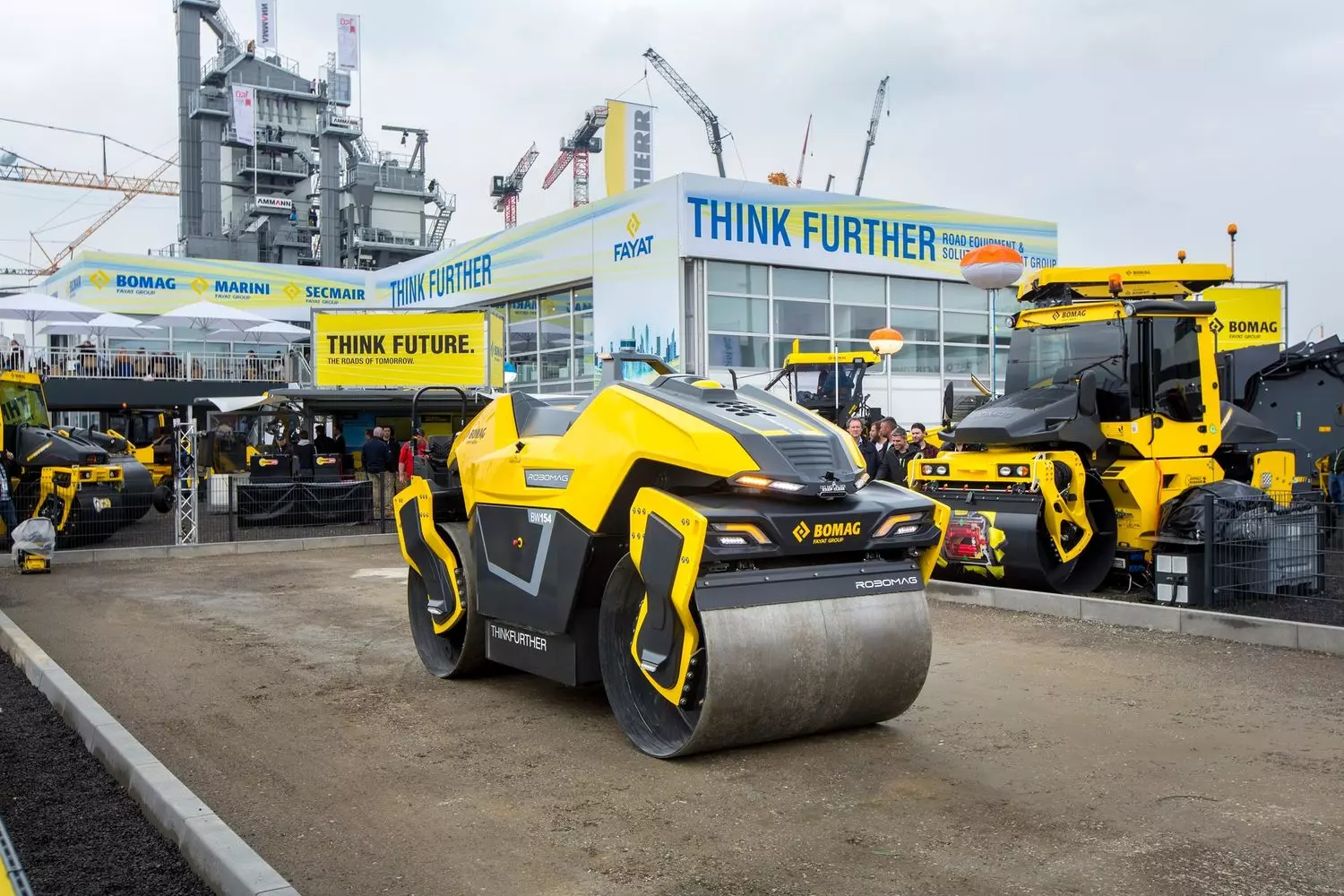

BOMAG ROBOMAG

Summary

The BOMAG ROBOMAG is a diesel-powered tandem roller platform built in two variants (BW 154 for asphalt, BW 177 for soil) as a technology study for autonomous compaction subsystems, developed with the Technical University of Kaiserslautern. It covers compaction across earthmoving and road paving, with the Emergency Brake Assist subsystem in full production since September 2024 and Stage 1 radio remote control available as a factory option. The ROBOMAG remains classified as a prototype; full autonomous compaction has not been demonstrated outside trade shows.

Compaction Subgrade Preparation Aggregate Base Placement Compaction (Rolling Train)

How it works on your site

Compaction

The ROBOMAG BW 154 and BW 177 are R&D platforms where BOMAG tests subsystems for autonomous compaction individually, including LiDAR-based obstacle detection, GPS geofencing for area definition, and programmed rolling patterns. BOMAG and Autonomous Solutions Inc. are separately pursuing the BW 213 single drum roller with Variocontrol intelligent compaction as the commercial path to autonomous roller operation.

Compaction (Rolling Train)

The ROBOMAG concept and the BW 213 collaboration both target rolling-train compaction behind a paver. The BW 213 uses articulated steering and handles compaction layers 300 to 1,200 mm thick.

Also covers

Subgrade Preparation, Aggregate Base Placement

How it worked on other sites

Various construction sites (unspecified) · Planned for 2024

EBA system tested on active construction sites with selected (unnamed) customers.
Planned 2024 deployment; no outcomes, productivity data, or customer feedback published.

Will it work on your site

Surface Asphalt (BW 154), Soil (BW 177)

Power Diesel (Stage V / Tier 4f)

Site preparation GPS geofencing for area definition Manual movement pattern entry required

Remote control range 100 yd (radio remote) Factory option; Stage 1 only

Operating weight 7,200 kg (BW 154) BW 177: 6,775 kg

Working width 1,500 mm (BW 154) BW 177: 1,690 mm

Slope tolerance 31 degrees (60% grade) Base machine spec, BW 177 DH variants

Travel speed 10 km/h (BW 154 AP-4V); 10.5 km/h (BW 177 D-5) Base machine spec, not ROBOMAG-specific

Vibration 55 Hz, 69 kN centrifugal force (BW 154 AP-4V); 29/32 Hz high/low, 1.90/0.80 mm amplitude, 112/74 kN centrifugal force (BW 177 D-5) Base machine spec; ROBOMAG autonomous mode vibration control via Asphalt Manager may alter parameters automatically

Engine power 55.4 kW (74 hp), Kubota V3307 CR-T, 4-cylinder, 3.3 L displacement Same engine in both base platforms
