Raise

Raise RoboticsInterior Layout, MEP Installation

Multi-tool arm on wheels; drilling, bracket install, and layout from one platform

9
Deployments: 4
Companies that ran it

How it works on your site

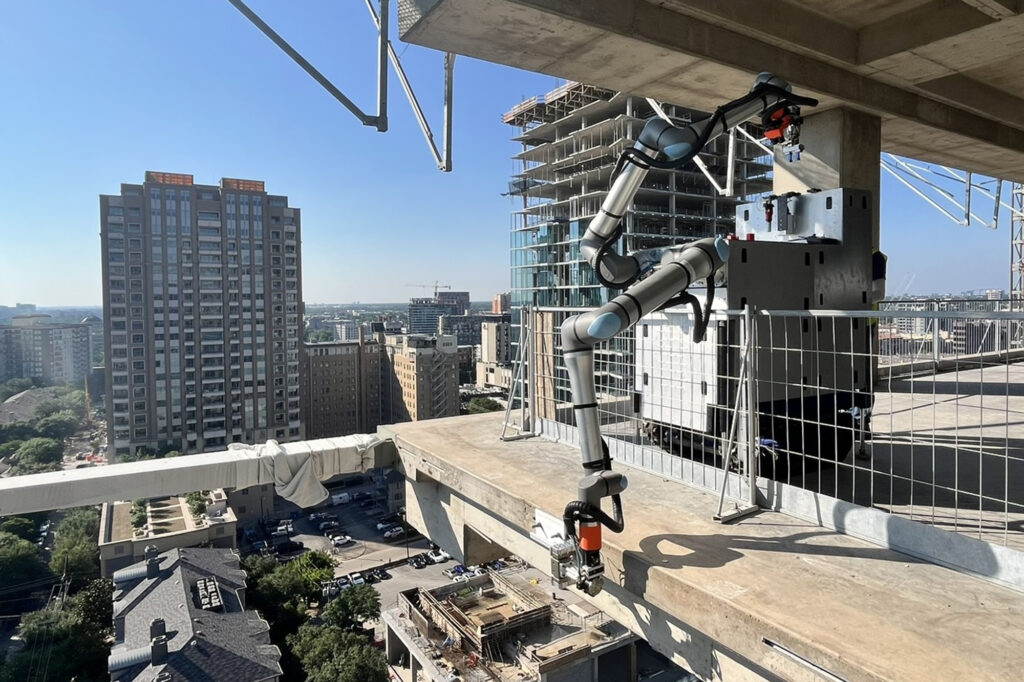

The Raise is a battery-powered, wheeled-compact cobot platform built on dual UR20 arms that prints layout, drills anchors, and installs facade brackets on concrete slabs, ceilings, and walls. It covers overhead drilling, MEP penetration marking, and ceiling grid layout including bracket installation for curtain wall trades; taping, framing, and board work stay with the crew. On a 1,000-ft high-rise, glaziers stay inside the handrail while the robot marks curtain-wall layout at the leading edge, six feet beyond the crew. Raise has been shipping since 2023.

Interior Layout

MEP Penetration Marking

The robot locates itself via total station and prism, drives to each point, and marks the specified geometry. Ceiling and wall marking runs alongside floor layout in the same pass; the crew handles file preparation and control point establishment before the robot begins.

Ceiling Grid Layout

MEP Installation

Overhead Drilling & Anchoring

The Raise drills anchors and penetrations at the points set in the digital plan and logs every hole it drills. The crew's operators plan the drilling run, run the robot and check the finished holes.

Play the video
Video from Raise Robotics
Image: Raise Robotics

Field outcomes

1 of 3

Image: Raise Robotics

Harmon Inc drilled and fastened glass facade panels on a Dallas high-rise with a Raise Robotics robot, so no worker hung off the building.

High-rise project (likely 23Springs, Dallas TX), USA

RaiseHarmon Inc
Image: Raise Robotics

JR butler, the glazing contractor, brought Raise onto the St. Jude Children's Research Hospital project in Memphis after hand layout on the first two floors, and the robot laid out curtain wall positions for more than 10,000 glass panels.

St. Jude Children's Research Hospital, USA

RaiseJR Butler
Image: Raise Robotics

TSI corporations partnered with Raise Robotics on a facade project in Reston, Virginia, where a Raise V1 robot scanned anchor channels and installed top-of-slab curtainwall brackets.

Facade project, Reston, Virginia (likely Reston Row OB5 per portfolio), USA

RaiseTSI Corporations

Who has run it

9 deployments · 4 companies · 1 country

Will it work on your site

Working reach: 1.75 m (5 ft 9 in)UR20 arm kinematic reach; total working height depends on base configuration (ground, scissor lift, or boom lift)
Environment: Indoor and outdoorVendor claims -20F to 120F; UR20 arm rated 32-122F (0-50C) by Universal Robots. Lower bound unverified.
Throughput: 3x labor multiplier (1 operator replaces 6-8 workers)Based on building envelope fastener installation scope
Placement accuracy: +/- 3/16 in. (4.8 mm)Vs. ~30% misplacement rate in manual installs
Footprint: 965 mm (38 in.) wideFits through standard commercial doorways
