Conjet ACR Robot 327
Compact tracked electric hydrodemolition robot for selective concrete removal in confined spaces
- 0
- Deployments
- 0
- Companies that ran it
How it works on your site

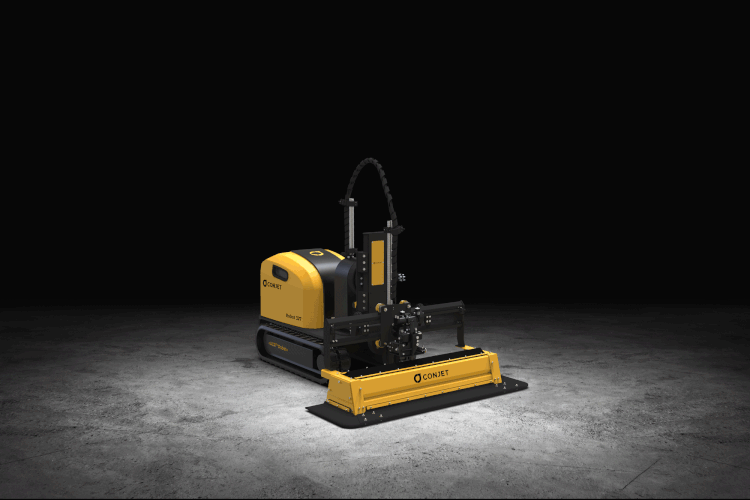

The Conjet ACR Robot 327 is a tracked, electric-powered hydrodemolition robot built for selective concrete removal in confined spaces where larger equipment cannot access. It removes damaged concrete on horizontal, vertical, and overhead surfaces using high-pressure water jets while an operator sets parameters and monitors via the Conjet ONE wireless remote control. The 327 is shipping and available through Conjet's international distribution network including NLB rental in the US and Canada.
Concrete Removal and Repair
The tracked robot removes damaged concrete from horizontal, vertical and overhead surfaces with high-pressure water jets, and fits confined spaces that larger equipment cannot reach. The operator sets the jet parameters and monitors the work from the Conjet ONE wireless remote.
Will it work on your site
- Footprint
- 2,850 mm L x 820-1,200 mm W x 1,420 mm H1,180 kg base; 1,330 kg with counterweight
- Throughput
- 1-4 cubic yards per hour (with 500 hp pump); replaces 10-12 jackhammer operatorsRate varies with pump pressure, flow, and concrete strength
- Operating pressure
- Up to 3,000 bar; standard lance 1,600 bar DN20Reaction force max 1,500 N; lances for other pressure ranges available
As the maker states it.
