Image: Doka GmbHDokaXbot Lift
Remote-operated slab formwork lifter locked to the DokaXdek system
- 3
- Deployments
How it works on your site

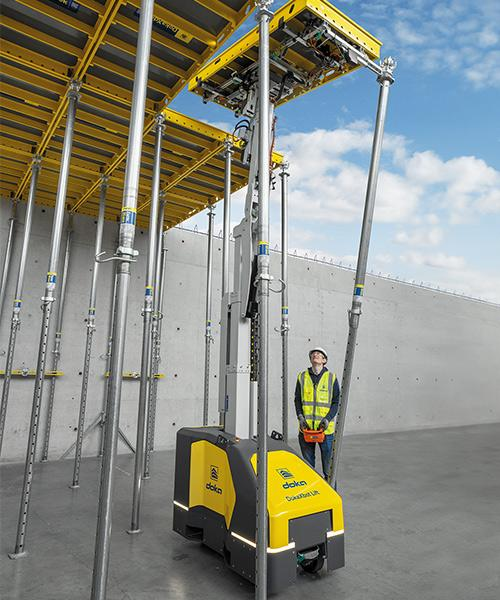

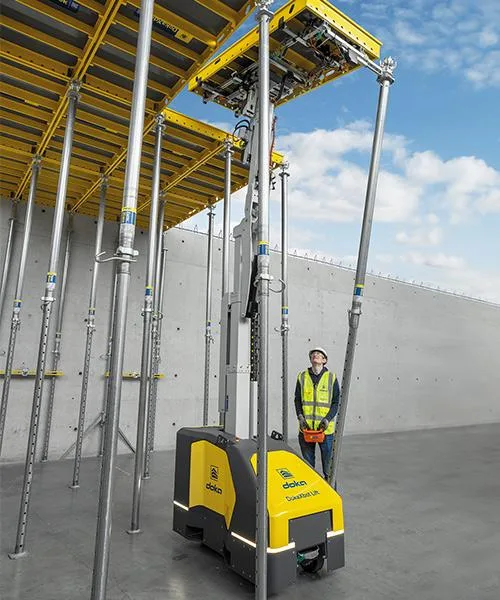

The DokaXbot Lift is a wheeled, remote-controlled robot that lifts and positions DokaXdek slab formwork panels from ground level to working heights up to 5.7 m using a three-step semi-automated workflow. It covers one subtask within the concrete job category: formwork installation, including slab-edge placement with safety railings fitted. The robot is available as a rental product following its reengineered debut at bauma 2025; a prototype first appeared at bauma 2022 at 5.2 m working height.
Formwork Installation and Stripping
The operator pre-positions the robot and panel from ground level using a remote control, the robot automatically adjusts height and fine-positions the panel using onboard sensors, and the operator then manually guides the panel into its final position in the support heads. The robot handles slab-edge placement with safety railings fitted, covering perimeter forming work. The crew still handles support head setup, panel loading, and all work outside the DokaXdek system.
Will it work on your site
- Surface
- Floor surfaces (slab formwork context)Floor unevenness compensation available
- Formwork system
- DokaXdek panels and I-framesPart of the DokaXdek slab formwork family; compatibility with non-Doka formwork systems not documented
- Payload per cycle
- Approximately 41 to 50 kg (panel plus floor prop)Derived from DokaXdek component weights; robot payload rating not published
- Safety features
- Ground-level remote operation; no work under suspended loadOperator must still guide panel into final position at height
As the maker states it.
