BauBot MRS15 series

fischer (fischer group of companies) / Baubot GmbH · Drilling · Shipping since 2022

3 Confirmed Deployments
9 Unique Customers

Last updated: 2026-05

Summary

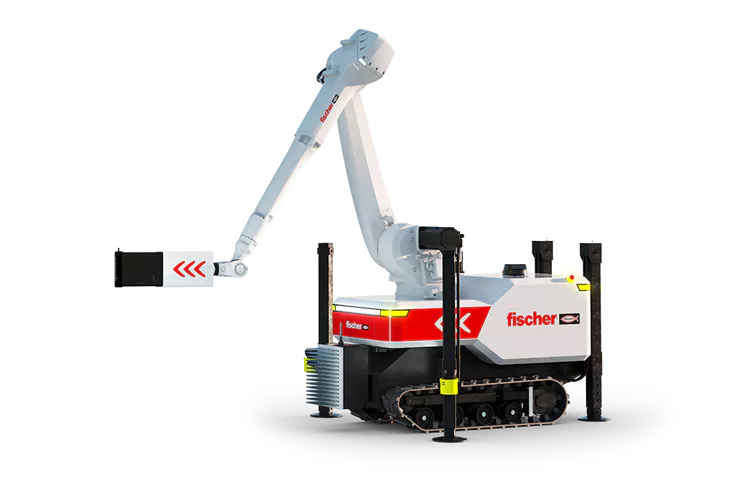

The BauBot MRS15 is a 1,200 kg tracked drilling robot built on a KUKA KR IONTEC 6-axis arm that automates overhead and multi-angle drilling, hole cleaning, marking, and anchor setting in concrete up to grade C120. It covers one subtask within MEP installation: drilling and anchoring on ceilings, walls, and floors, with the crew handling layout, conduit runs, and all non-drilling trades. The MRS15 has been shipping since 2022; fischer completed a full acquisition of Baubot GmbH in October 2024 and has deployed across Austria, Germany, and the Netherlands.

BauBot MRS15 series video
Overhead Drilling & Anchoring

How it works on your site

Overhead Drilling & Anchoring

The robot positions itself via robotic total station, drills at any angle from floor to ceiling, cleans the hole to ETA standards, marks it for trade identification, and sets the anchor from a 150-piece onboard magazine. A fischer-certified operator supervises from ground level while the KUKA arm reaches up to 5.0 m; the crew no longer works at height for repetitive drilling tasks. Force and torque sensors monitor each drill cycle and trigger a predefined response when the bit hits rebar or voids.

How it worked on other sites

OBB Infrastruktur AG at Koralm Tunnel (32.9 km twin-bore railway tunnel)

OBB Infrastruktur AG

Rail infrastructure · Austria · Within broader tunnel project (2009-2025)

  • Drilled railing bracket holes at 0.5 m intervals and set anchors for handrails and water pipe fixing.
  • Deployment timing within the broader tunnel project not precisely documented.

Robot also used by

Autobahn GmbH

Will it work on your site

Surface Concrete up to C120, reinforced concrete
Minimum ceiling height Operated at 3.2 m ceiling in Utrecht (effective 2.7 m with crossbeams) No product-level minimum published; Utrecht is the lowest documented deployment
Working height 5.0 m (MRS15-3120 Max tool) 7.5 m achieved on elevated platform
Operating weight Approx. 1,200 kg (vendor states <1,300 kg) Requires floor loading capacity check; fits through standard doors at 90 cm width
Power Battery + single-phase/three-phase mains 8-hour battery (prototype-era figure)
Site preparation BIM model with drill positions, total station fischer provides 3D scan and BIM creation service
BIM/CAD BIM files, 3D CAD, and 2D drawings via PSE software Revit-specific integration is vendor-stated only
Environment IP54 (MRS15 per vendor spec); IP65 stated in some press coverage Confirm rating with fischer for outdoor wet-weather deployments
Safe operation distance LiDAR-enforced exclusion zone (SICK microScan3, 2x 270-degree coverage) Exact radius is configurable; 5.0 m is vendor-stated
Operator fischer-certified operator required Rental model includes operator; purchase model TBD
Throughput Approx. 30 seconds per hole; 3,717 holes in 24 hours (Guinness World Record, test centre) Field rate depends on hole spec, repositioning frequency, and substrate; Engelberg tunnel required approx. 8,960 holes over six months
Business model Daily rental (transport, operator, and system included) or purchase Rental popular with firms needing the robot for a few projects per year; pricing not published
Footprint and access 90 cm wide; fits through standard doors Vendor states transport position under 800 mm W x 2,100 mm L x 1,800 mm H; operating position widens to under 1,700 mm
