Mark1

Summary

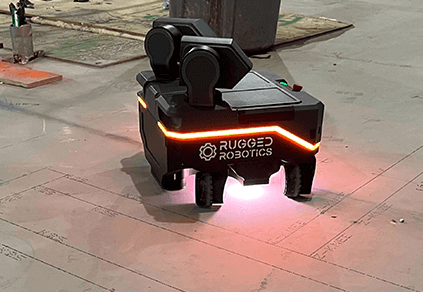

The Rugged Robotics Mark1 is a compact wheeled robot that prints construction floor layout (lines, text, symbols, and annotations) directly onto concrete slabs from Revit, AutoCAD, or CSV files. It covers wall lines, door and window openings, MEP penetrations, and finish boundaries in a single multi-trade pass; Rugged's own team processes BIM files and operates the robot on site in a full-service Layout-as-a-Service model. The Mark1 has been shipping since 2021 with 10 confirmed production deployments across data center, healthcare, government, and industrial segments in the United States.

Wall Line Marking Door and Window Opening Layout MEP Penetration Marking Finish Boundary Marking

How it works on your site

Wall Line Marking

The Mark1 prints wall track lines by navigating the slab on its holonomic drive system, referencing passive targets placed on control points instead of a robotic total station. Rugged's VDC team processes the coordinated BIM model and the robot prints all trade lines from a single source file, eliminating conflicts from separate crews using different measurement baselines.

Door and Window Opening Layout

Door and window opening marks print alongside wall lines in the same deployment pass; the robot's 5.5-inch printhead lays down opening dimensions, hardware locations, and build-by-number annotations that framers read directly off the slab. The holonomic drive strafe-prints around existing obstructions and openings without repositioning.

MEP Penetration Marking

MEP pass-throughs, HVAC penetrations, and drain pipe locations print as symbols and annotations with the 5.5-inch printhead. The smudge-proof ink remains readable through subsequent concrete pours and foot traffic, giving mechanical and plumbing trades a persistent reference on the slab.

Finish Boundary Marking

Finish boundaries, flooring transition lines, and architectural features print in the same pass as structural layout. The wide printhead renders boundary patterns and contour details legible to flooring crews without secondary markup.

What users have experienced

50%

Cost reduction

brogoitti construction · deployment →

160000 sq ft per day

Throughput

Rugged Robotics

60%

Time saving

Rugged Robotics

Robot deployment record

10 deployments on public record

Type

Segment

Deployments on record for this robot
Project	Organizations	Country	Detail
Hyperscale Data Center production	Hensel Phelps	USA
Five production deployments covering racking baseplates, anchor locations, wall track, HVAC passthroughs, and architectural features. 750+ labor hours freed from manual layout across the project (vendor-stated). Hensel Phelps's record →
Manufacturing Facility (Selmers) production	brogoitti construction	Not stated
Equipment install layout completed in under 2 weeks with two Mark1 robots. 3,000+ marks placed in 4 days (~375 marks/day per robot). manual cost 6-8 crew members over 8 weeks (implied) cost reduction pct 50 brogoitti construction's record →
TDCJ Infirmary Gut Renovation demonstration	Turner construction	Not stated
Complete multi-trade layout (walls, doors, MEP, medical infrastructure, drain pipes) within first week of trade mobilization. Layout coordinated across existing columns 2+ inches out of place with twisted grid lines. Turner construction's record →
Mesquite Government Center production	Suffolk construction	Not stated
manual cost 7-8 days/floor (implied) robotic cost 3 days/floor Suffolk construction's record →
Multi-Level High School Terrazzo production	Roman mosaic	USA
manual cost 500 sheets plywood for templates (implied) Roman mosaic's record →
Cambridge Crossing (Parcel H, Sanofi HQ) pilot	Consigli	Not stated	—
Not stated trial	Not stated	Not stated	—
Not stated trial	Not stated	Not stated	—
Not stated trial	Not stated	Not stated	—
Cape Cod Elevation Contour Project production	Suffolk construction	Not stated	—
