Lightweight GNSS premarking robot for UK motorway centre-line layout
- 6
- Deployments
- 5
- Companies that ran it
How it works on your site

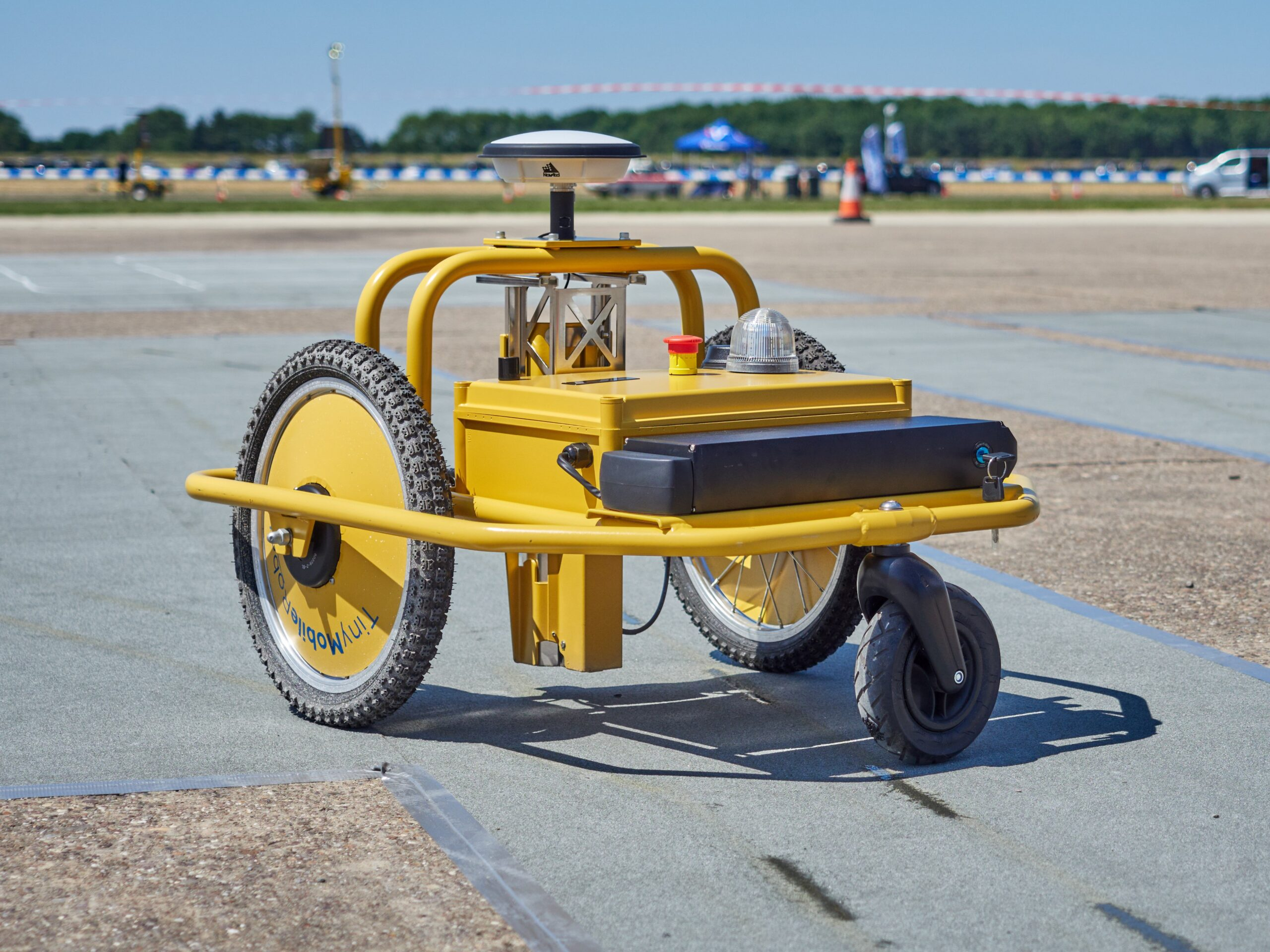

The WJ Group Robotic PreMarker is an 18 kg wheeled robot that autonomously sprays temporary pre-marking dots and lines on road carriageways, following a GNSS-guided digital marking plan loaded via USB. It covers one subtask within the roads and pavements job: layout and measurement for highway surface works, including centre lines and car park bays; final line application, symbols, and other marking patterns stay with the crew. The Robotic PreMarker has been in production deployments since 2018 across six confirmed UK highway schemes for contractors including Balfour Beatty and Costain/Galliford Try.
Layout and Measurement
The robot loads a digital marking plan in CSV or DXF format from a USB key and follows GNSS coordinates to spray temporary pre-marking positions on the carriageway. The operator stays inside a vehicle behind the traffic management closure while the robot traverses the work zone. Final permanent line application, symbols, hatching, and complex junction geometry remain crew work.
Who has run it
6 deployments · 5 companies · 1 country
Will it work on your site
- Surface
- Road carriagewaysCar parks vendor-claimed only
- Site preparation
- Digital marking plan (CSV/DXF via USB)GNSS signal and traffic management required
- Power
- Battery8-hour runtime (distributor-confirmed)
- Positioning
- GNSS-guided, 1 to 2 cm standard accuracy5 mm measured on one 3 km straight section (M1); complex geometry accuracy unknown
- Operating weight
- 18 kg without battery, approximately 22 kg with batterysingle-operator portable
- Navigation
- GNSS or Total StationTerra model supports both; GNSS is the standard mode for road pre-marking deployments
Show all 8
- Connectivity
- Bluetooth and radio link to tablet controller; USB for data transferNo cloud sync or cellular dependency
- Weather resistance
- Weatherproof construction; operates in rainNo IP rating published; temperature range not specified
As the maker states it.
