Brokk 70

Summary

The Brokk 70 is a 560 kg tracked, tethered-electric demolition robot controlled remotely via SmartRemote at distances up to 300 m. It covers structural demolition, soft-strip and selective salvage, and material sorting using swappable hydraulic attachments including breakers, crushers, grapples, and drum cutters; the operator stays clear of the demolition zone while the crew handles site prep and debris removal beyond the arm's reach. The Brokk 70 has shipped since its April 2019 Bauma launch, with the Brokk 70+ successor (IP65, OTA updates, MyBrokk connectivity) introduced at World of Concrete in January 2024.

Soft-Strip / Selective Salvage Structural Demolition Material Sorting & Segregation

How it works on your site

Soft-Strip / Selective Salvage

Grapple and clamshell bucket attachments (including the G32 sorting/demolition grapple) handle soft demolition and stripping of interior structures. The operator controls all functions remotely from behind the SmartRemote; the crew handles perimeter work and material transport beyond the arm's reach.

Structural Demolition

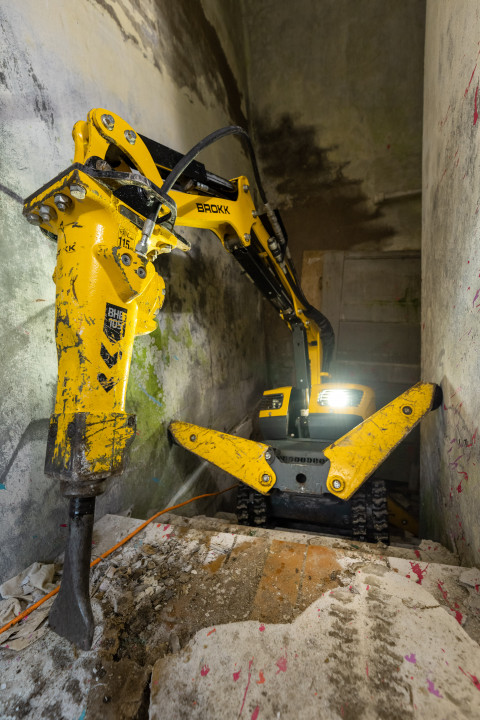

The BHB 105 hydraulic breaker runs primary concrete demolition at 750 to 2,300 blows per minute; a lighter BHB 55 breaker is also compatible for less reinforced work. The CC260 concrete crusher provides a lower-noise, lower-dust alternative with free rotation for rebar up to 16 mm diameter. Optional heat shielding, forced-draft cooling, and steel track pads extend the machine into high-temperature environments such as furnace demolition. The crew handles areas beyond the 3.2 m vertical and 2.7 m horizontal reach of the arm.

Material Sorting & Segregation

Clamshell bucket, multi-purpose grapple, and G32 sorting grapple attachments sort material and debris on site. The same attachment set used for soft-strip work doubles for segregation tasks.

How it worked on other sites

Commercial demolition · Buenos Aires, Argentina · 3+ years

Operator with 3+ years of Brokk 70 experience across confined-space, concrete, and interior-stripping demolition.
Operator certified January 2023; previously trained on excavators before transitioning to Brokk.

Industrial demolition · Nashville, Tennessee, USA · 10 years in demolition

Fleet of 18 Brokk machines across commercial and industrial demolition, including pressure ladle descaling.
Brokk 70 not specifically confirmed within the 18-machine fleet.

Will it work on your site

Surface Concrete, compacted ground, hot surfaces Steel track pads required for hot ground

Minimum opening 597 mm (23.5 in)

Operating weight 560 kg Fits standard passenger elevator

Power Tethered electric, 9.8 kW 400V/50Hz or 440V/60Hz, 16A fuse

Remote control range 300 m Radio or cable control

Working reach 3.2 m vertical, 2.7 m horizontal With BHB 105 breaker

Travel speed 2.7 km/h (45 m/min)

Max attachment weight 105 kg BHB 105 at 100 kg approaches limit

Control SmartRemote portable controller Fully teleoperated

BIM/CAD None required

Environment Original Brokk 70: no published IP rating. Brokk 70+ (SmartPower+ generation, 2025): IP65 dust and water protection.

Arm reach 3.2 m vertical, 2.7 m horizontal Three-part arm; reach measured without attachment

Transport height 880 mm (35 in) Fits standard passenger elevator
