Image: Civ RoboticsCivDot Mini
Handheld-scale GNSS layout marker for road and highway premarking
- 2
- Deployments
- 2
- Companies that ran it
How it works on your site

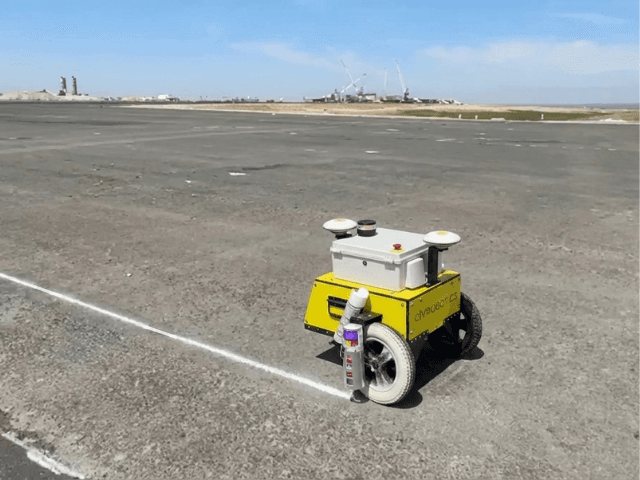

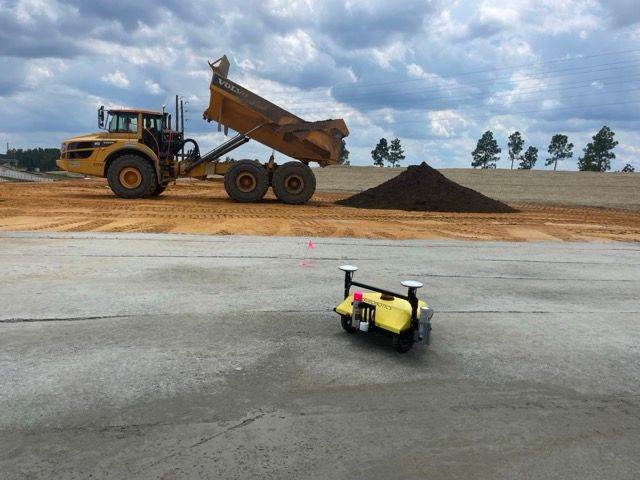

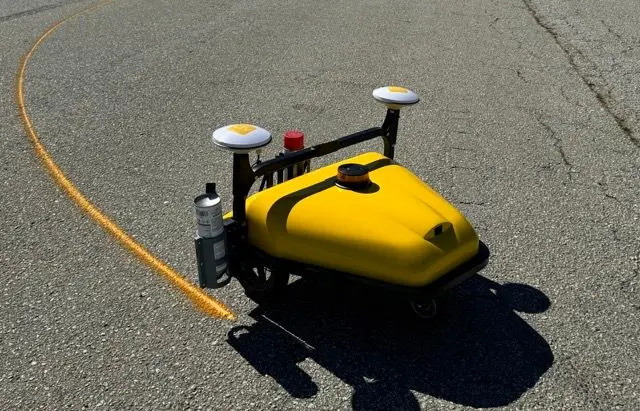

The CivDot Mini is a 35 lb wheeled robot that autonomously marks layout points, lines, curves, and dashes on outdoor construction sites using spray paint and GNSS/RTK positioning. It covers layout and pre-marking for roads, highways, and building pads from uploaded DXF or CSV plans; final striping and any indoor layout stay with the crew. The CivDot Mini is shipping.
Road Marking & Striping
Layout and Measurement
The robot navigates to each layout point using GNSS with RTK corrections and sprays the mark type selected in CivPlan software, without pre-scanning or total station setup. One operator follows at up to 100 feet and swaps spray cans when prompted by the tablet. The CivDot family also captures ground elevation data during marking, adding a surveying value alongside the layout pass.
Site Layout
Site-Level Horizontal Layout
- Play the video
Video from Civ Robotics
Image: Civ Robotics
Image: Civ Robotics
Image: Civ Robotics
1 / 4
Field outcomes
-
Image: Civ Robotics
CivDot Mini
Blythe Construction
Who has run it
2 deployments · 2 companies · 1 country
Will it work on your site
- Daily throughput
- 17 miles (27 km) of solid or dashed lines per dayMaker-stated figure repeated by independent press; no independent field measurement published
As the maker states it.
