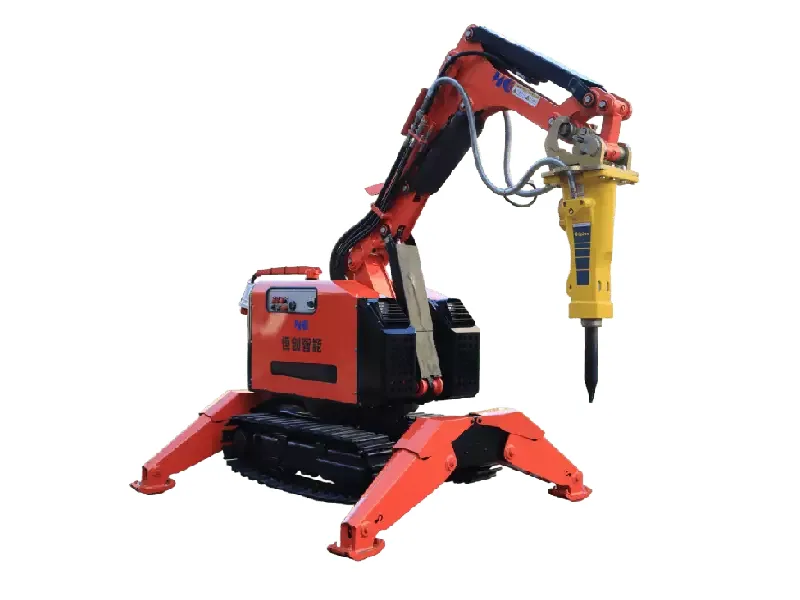

Image: HitechHCR170D
Compact remote-controlled electric demolition robot for strip-out, concrete breaking and debris
- 0
- Deployments
- 0
- Companies that ran it
How it works on your site
The HCR170D is a compact, remote-controlled tracked demolition robot from Anhui Hitech Intelligent Equipment Co., Ltd., driven by a 22 kW electric motor that runs on site mains power. An operator on a radio or cable remote control box works the arm and its interchangeable tool to strip out fit-out, break down concrete structure and handle debris, covering three demolition subtasks: soft-strip and selective salvage, structural demolition, and material sorting and segregation. Hitech lists the HCR170D as a shipping product in its HCR series and offers it for export; RIC found no documented deployment or named buyer.
Material Sorting & Segregation
Sorting splits broken concrete, steel and other debris into separate streams once the structure is down. On the HCR170D that handling runs through the buckets and grapples on Hitech's attachment list, moved by the operator from the remote control box.
Soft-Strip / Selective Salvage
Soft-strip clears a building of its non-structural contents and salvageable material ahead of structural work. The HCR170D's part in it rests on the interchangeable attachments Hitech lists for it, such as buckets, hydraulic shears and breakers, with the operator directing every move from the remote control box.
Structural Demolition
Hitech says the HCR170D carries out crushing and demolition work with interchangeable tools, naming floor-by-floor demolition and wall breaking on buildings. Hitech also markets it for rotary kiln and metallurgical furnace maintenance, mining and tunnelling, and the nuclear industry, where the nuclear use needs Hitech's optional nuclear protection. Hitech says the machine's size lets it enter narrow doorways and furnace mouths.
Will it work on your site
- Reach / Working Height
- 4.4 m maximum working radius (horizontal reach)Maximum working height 4.8 m; working depth 1.7 m
- Power Source
- Mains electric, 22 kW motor, direct startSupply voltage not published; no battery option listed
- Control Interface
- Portable remote control box, radio or cablePage and manual say 150 m radio; storefront 200 m
- Payload Capacity
- 270 kg recommended attachment weightHitech manual figure; not a lifting payload
As the maker states it.
