Magnetic climbing robot that maps steel wall thickness with ultrasonic sensors on pipes and tanks
- 7
- Deployments
- 6
- Companies that ran it
How it works on your site

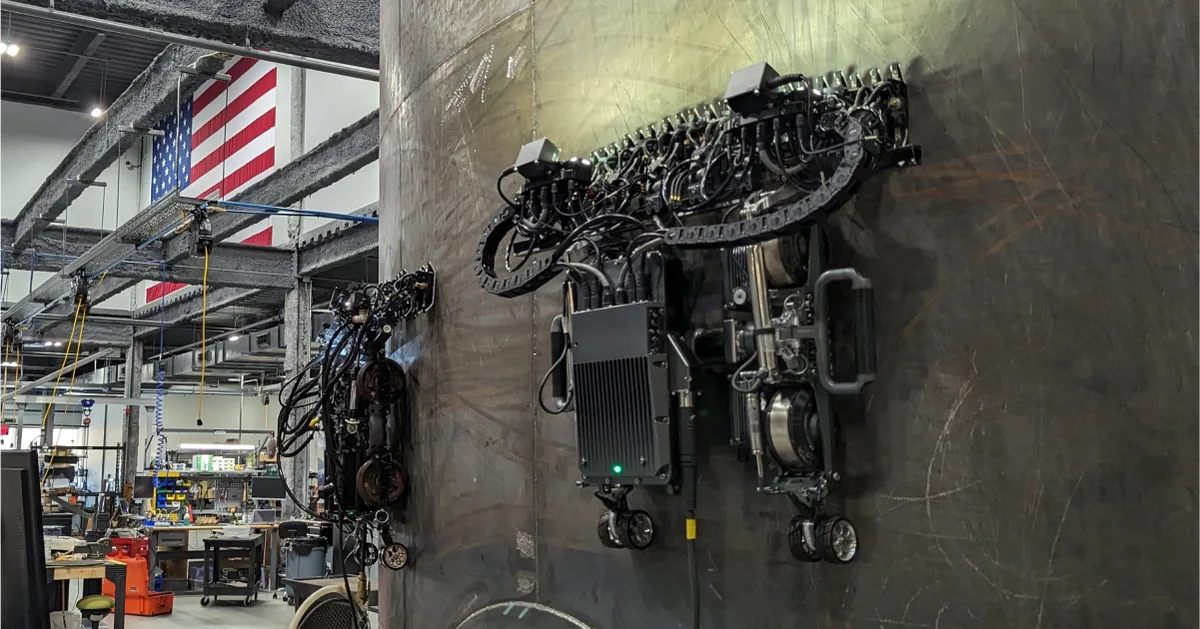

Gecko Robotics' TOKA crawlers are magnetic-wheel robots that climb steel boiler water walls, tanks, piping and ship hulls carrying ultrasonic probes that record wall thickness. Gecko supplies the crawlers with its own crew as a service; per the vendor, one inspector drives the robot while a Level II NDE inspector reviews the data as it is collected, and the thickness maps feed remaining-life models. At AMBIT's Grant Town power plant, the plant manager told POWER magazine that the crawlers map wall thickness across 100 percent of the water walls on both CFB boilers, where manual UT took spot readings at various locations. Gecko is shipping and works in power, oil and gas, defense, pulp and paper and mining.
Image: Gecko Robotics
Field outcomes
-
Image: Gecko Robotics
-
Image: Gecko Robotics
Who has run it
7 deployments · 6 companies · 2 countries
Will it work on your site
- Control Interface
- Tablet monitoringVendor: one inspector drives, a second reviews data
- Range From Operators
- 75 ft (22.9 m) from operatorsTOKA Flex; one source states it as climb height
- Max Obstacle Height
- 3/8 in (9.5 mm) obstaclesTOKA Flex
- Max Weld Cap Height
- 1/2 in (12.7 mm) weld capsTOKA 3 and TOKA 4 on boiler tubes
- Max Overlay
- 5/16 in (7.9 mm) overlaysTOKA 3 and TOKA 4
- Min Pipe OD
- 6 in (152 mm) pipe ODTOKA Flex; one source states 4 in
Show all 7
- Max Surface Temperature
- 275 °F (135 °C) surfaceTOKA Flex; sources differ on ceiling or floor
As the maker states it.
