Image: Rail RaiseRail Raise 200
Tracked machine that carries and lifts steel guardrail beams and installs them along highways
- 5
- Deployments
- 4
- Companies that ran it
How it works on your site

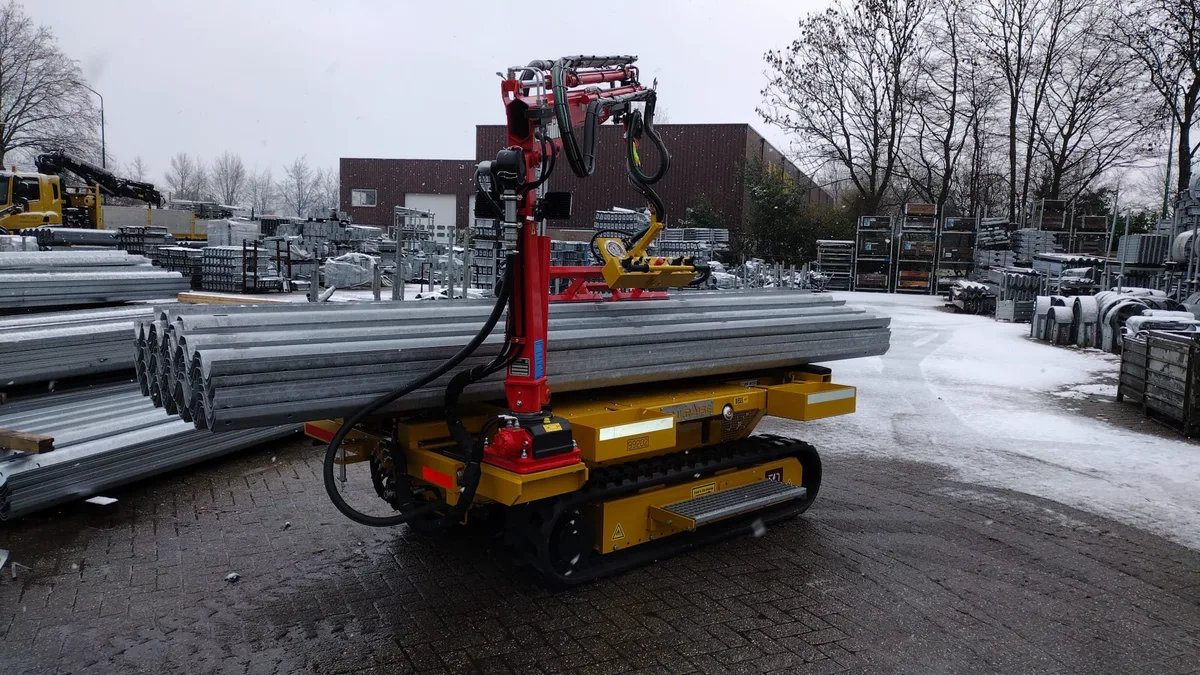

The Rail Raise 200 is a rubber-tracked, Stage V diesel machine for installing steel highway guardrail: it carries a pallet of guardrail beams weighing up to 2,500 kg along the work front, and its crane picks up one beam at a time by vacuum suction cup, with a maximum lift of 100 kg at a 4 m radius, under the operator's proportional hydraulic control. It handles beams and places them onto the post line; a separate machine, such as a GPS-controlled pile driver, drives the posts. The machine is shipping, with its first documented delivery in January 2022, five deployments on record across the Netherlands, Belgium and Germany, and one North American distributor, GSI Highway Products.
Image: Rail Raise
Field outcomes
-
Image: Rail Raise
Rail Raise 200
Littlewood Group (Littlewood Fencing Limited)
-
Image: Rail Raise
Rail Raise 200
Van Doorn Buitenruimte
-
Image: Rail Raise
Rail Raise 200
BAM Infra Nederland
-
Image: Rail Raise
Rail Raise 200
Who has run it
5 deployments · 4 companies · 4 countries
Will it work on your site
- Control
- Proportional hydraulic, manualCrane slews over the installer
- Carrying capacity
- Up to 2,500 kgBeam pallet carried along the work front
- Crane lift
- Up to 100 kg at 4 m radiusOne beam per cycle, by vacuum suction cup
- Work lighting
- Work lights fittedVendor states they enable night operation
- Beam stock on board
- Yes, up to 2,500 kgBeams travel on the machine along the work front
As the maker states it.
