PNP-3000iC

Summary

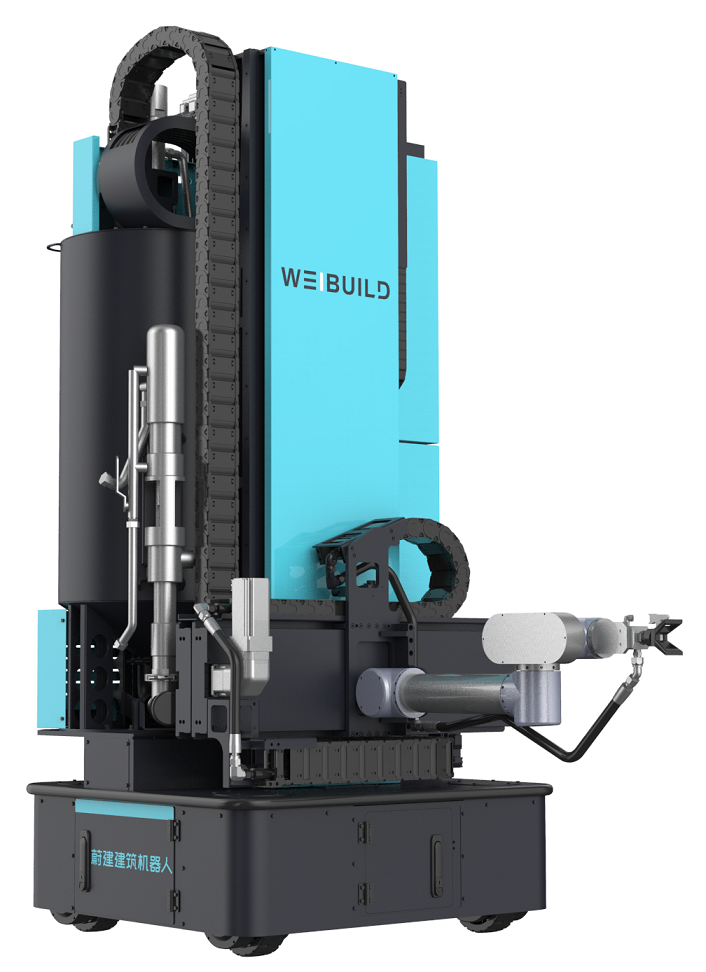

The WEIBUILD PNP-3000iC is a battery-powered, wheeled interior spraying robot with a front-mounted 4-axis arm on a lift and traverse axis. It sprays putty (joint compound), latex paint, primer, and water-based coatings on interior wall and ceiling surfaces up to 3.2 m working height; sanding, taping, and exterior work stay with the crew. The PNP-3000iC has been shipping since 2023, with a 3-year centralized procurement contract from Singapore's Housing & Development Board and demonstration deployments in the UAE and Taiwan.

Finishing (Second and Third Coats) Skim Coating (Level 5 Only) Priming Painting

How it works on your site

Finishing (Second and Third Coats)

The robot sprays primer and two topcoats from the same mechanical platform used for putty application. The front-mounted 4-axis arm handles walls and ceilings; taping, corner work, and surface preparation remain crew tasks.

Skim Coating (Level 5 Only)

The 4-axis arm sprays one or two coats of putty while built-in tilt compensation maintains constant nozzle-to-wall distance during vertical movement. Coating thickness uniformity is within 0.1 mm deviation (vendor-stated). The PNP-6000iC variant reaches 5.9 m for commercial ceiling heights that the 3000iC cannot cover.

Painting

The robot paints a complete residential flat without worker supervision. A separate modeling robot scans the room and generates the spraying program; the PNP-3000iC then executes the plan autonomously, including navigation between work points.

Also covers

Priming

How it worked on other sites

Residential · Singapore (national scale) · 3-year term contract from 2025

3-year term contract won through Singapore's inaugural bulk procurement for construction painting robots.
Interior wall latex paint spraying across majority of new HDB BTO projects.

Residential · Singapore (MacPherson BTO, Yishun North, Tengah) · Trials since Aug 2023; production from 2025

Painting, plastering, sanding, and interior finishing across multiple BTO sites.
Trials running since August 2023, transitioning to production deployment from 2025.

Residential · Dubai, UAE · Sample construction / inspection

Interior wall plastering for sample construction and inspection phase.
Demonstration deployment for Arabian Construction Company (ACC) on a luxury residential project.

Robot also used by

Housing & Development Board (HDB)

Linkwise

Will it work on your site

Environment Indoor only

Surface Interior walls and ceilings

Working height 3.2 m (10.5 ft) PNP-6000iC reaches 5.9 m

Footprint 860 x 760 x 1,790 mm 580 kg dry weight (distributor figure); 1.8 m minimum operating width

Power Battery; 4-hour runtime Vendor-stated

Throughput (putty) 200 sq m/h per coat Vendor-stated; won CIC/GBA competition Champion of Efficiency award but independent throughput measurement not published

Throughput (paint) 260 sq m/h per coat Vendor distributor figure (BES Global, Singapore)

Materials Water-based only Putty, latex paint, primer, interface agents

Control Mobile app, one-touch start

Operator profile 3 days to mastery Vendor-stated; zero prior experience required

Commercial structure Term contract via HDB centralized procurement (Singapore); 3-year deployment with local partner Linkwise Direct purchase or lease terms outside Singapore not published
