Image: AquajetERGO Spine GO
Compact electric hydrodemolition system whose water-jet head travels on a modular rail
- 0
- Deployments
- 0
- Companies that ran it
How it works on your site

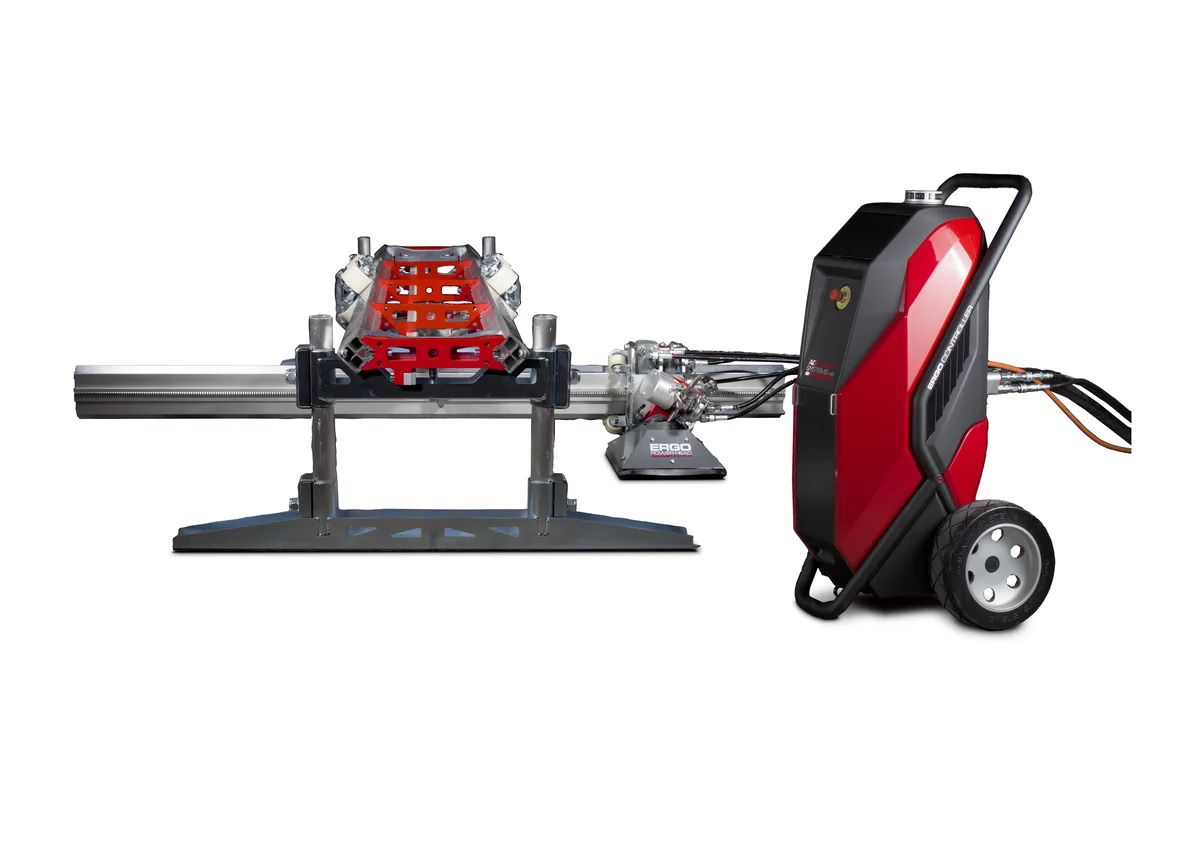

Aquajet Systems describes the ERGO Spine GO as a compact, mains-electric hydrodemolition system: a water-jet power head travels on a modular rail that stands on support legs or is fixed to the surface, run by radio or remote control and fed by a separate high-pressure pump. By Aquajet's account it removes concrete and prepares surfaces on walls, floors and ceilings in a standard setup, with a side setup for narrow or confined spaces. The product is listed as shipping, and its product page and leaflet date from December 2021 and January 2022.
Concrete Removal and Repair
Image: Aquajet
Will it work on your site
- Reach / Working Height
- 0-2.0 m working width, linear beamRoller beams of 0.25, 0.5 and 1.0 m
- Site Preparation
- Rail on support legs or fixed to the surfaceSingle-bolt connections of one size, per Aquajet
- Control Interface
- Radio remote with display; Controller displayHard-wire option; Rotolance Ergo compatible, per Aquajet
- BIM/CAD Requirements
- No BIM or CAD input statedSettings entered on the Controller or radio remote
As the maker states it.
