Image: FangshiCrawler-type Concrete Smoothing Robot
Battery crawler robot that smooths fresh concrete floors after initial set, up to 2 m construction width
- 13
- Deployments
- 2
- Companies that ran it
How it works on your site

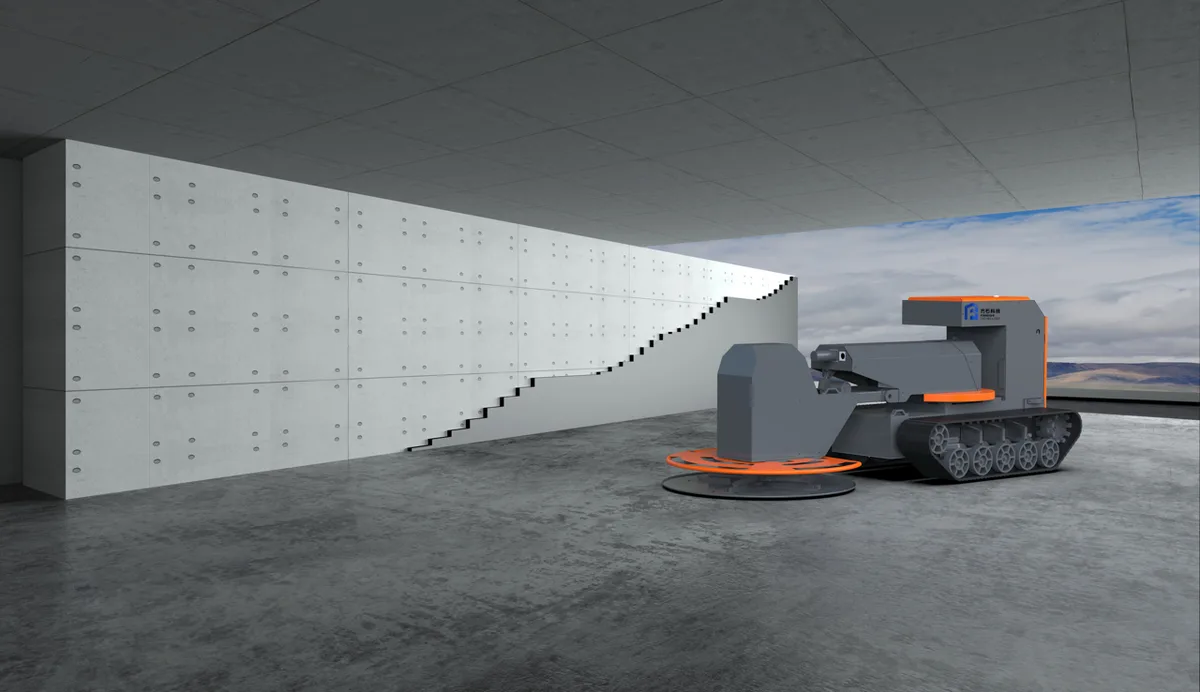

The Crawler-type Concrete Smoothing Robot is a battery-powered, remote-controlled tracked (crawler) machine from Beijing Fangshi Robotics (China) that works the slab with a rotating smoothing disc on a swinging arm. It smooths fresh concrete floors after initial set (提浆收面), and Fangshi places it between laser screeding and disc troweling in its floor sequence. Fangshi's own case pages and press releases name it on 11 projects in China dated November 2021 to November 2024; Fangshi publishes no product status, and the robot is also sold by ProBuild Robotics (US).
Surface Finishing and Troweling
Image: Fangshi
Field outcomes
1 of 5
-
Image: Fangshi
-
Image: Fangshi
-
Image: Fangshi
-
Image: Fangshi
-
Image: Fangshi
Who has run it
13 deployments · 2 companies · 1 country
Will it work on your site
- Site preparation
- Concrete placed and at initial setFangshi's sequence puts a laser-screed pass first
- Power source
- Battery, Fangshi spec4 kW rated power (Fangshi spec)
- Autonomy level
- Remote-controlled by an operator, Fangshi specFangshi's "unmanned autonomous movement" claim is unverified
- Control interface
- Remote control, 200 m rangeFangshi spec (遥控 on the Chinese page)
- Operating weight
- 300 kg, Fangshi specSize 2200 x 880 x 850 mm
- Navigation method
- Operator-driven by remote controlNo sensors or navigation system published
Show all 7
- Battery life
- 4 h continuous working time, Fangshi specCharging time not published
As the maker states it.
Want more information?
Other robots for concrete construction
- Image: Advanced Construction RoboticsTyBOTAdvanced Construction RoboticsGantry robot that rides a bridge deck and ties the rebar intersections of both mats58 deployments · 1 country
Photo: FangshiFour-disc Concrete Pavement Troweling RobotFangshi RoboticsRemote-controlled trowel robot on four discs that finishes fresh concrete slabs before final set, 1.4 m wide20 deployments · 1 country
Image: AquajetAquajet Aqua CutterAquajetFamily of 8 sizes16 deployments

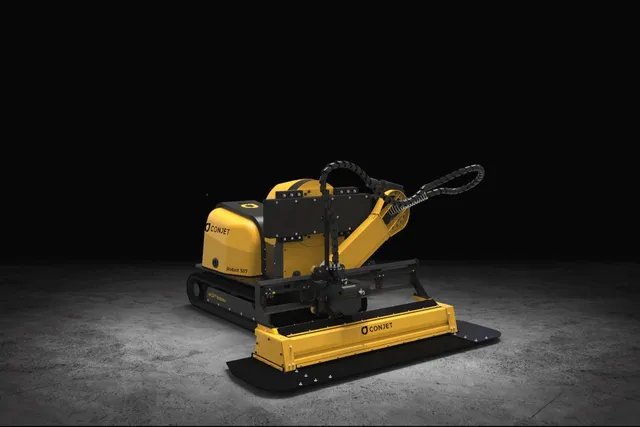

ConjetConjetFamily of 4 sizes5 deployments
Image: Advanced Construction RoboticsIronBOTAdvanced Construction RoboticsRail-riding gantry robot that lifts rebar bundles up to 5,000 lb and places bridge deck bars4 deployments · 1 country

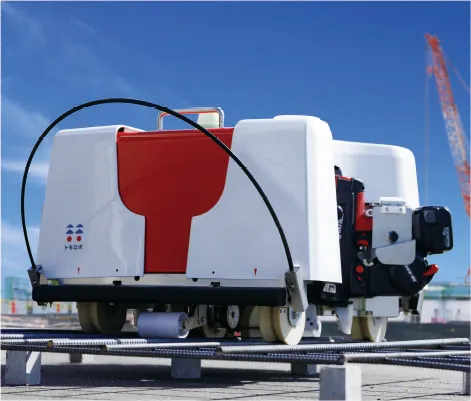

Image: KenroboTOMOROBOKEN ROBOTECHAutonomous rebar tying robot for slab grids3 deployments · 2 countries
