Image: Fangshi RoboticsSpray-scraping & Sanding Integrated Robot JPD433D
Arm-on-AGV robot that sprays, scrapes and sands putty and sprays paint on walls up to 3.3 m
- 2
- Deployments
How it works on your site

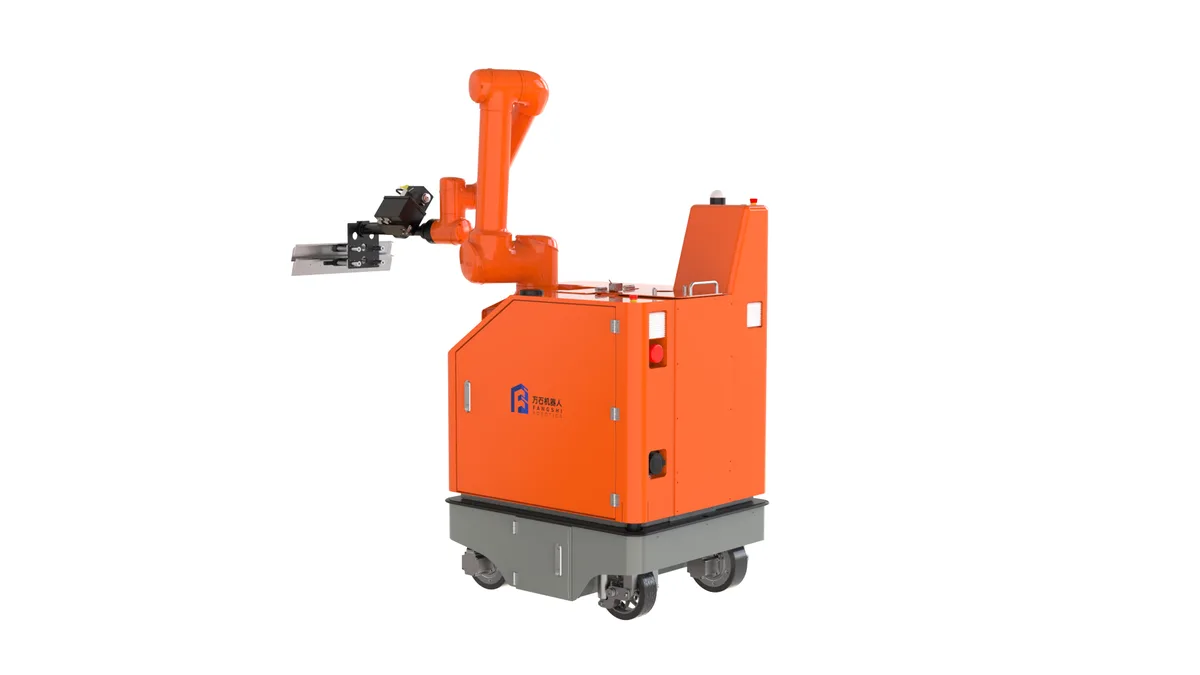

The Spray-scraping & Sanding Integrated Robot JPD433D is a Fangshi Robotics interior finishing robot: a 6-DOF arm on a mobile AGV base that sprays putty onto walls and ceilings and scrapes it flat, up to a 3.3 m construction height. Once the putty cures, an end-effector swap turns the same machine to sanding, and another swap sets it up to spray the latex top coat across walls, ceilings, bay windows, beams and column surfaces. The JPD433D is shipping; Fangshi's product page and brochure publish two different spec sets for weight, footprint, barrel volume and rated output.
Painting, Sanding, Skim Coating (Level 5 Only)
Image: Fangshi Robotics
Will it work on your site
- Site Preparation
- Masking of finished surfaces before sprayingFangshi solution workflow; putty cures between coats
- BIM/CAD Requirements
- No BIM or CAD input statedOnboard mapping generates coverage paths (vendor)
- Fleet Management
- Building Robot IoT PlatformMulti-floor, multi-robot task dispatch (Fangshi platform)
- Overall Dimensions
- 850×700×1750 mm (L×W×H)Brochure figure; product page lists 900×750×1750 mm
- Overall Dimensions
- 900×750×1750 mm (L×W×H)Product page figure; brochure lists 850×700×1750 mm
- Charging Barrel Capacity
- 21 LBrochure figure; product page lists 42 L
As the maker states it.
