Image: Fangshi RoboticsCeramic Floor Tile Laying Robot

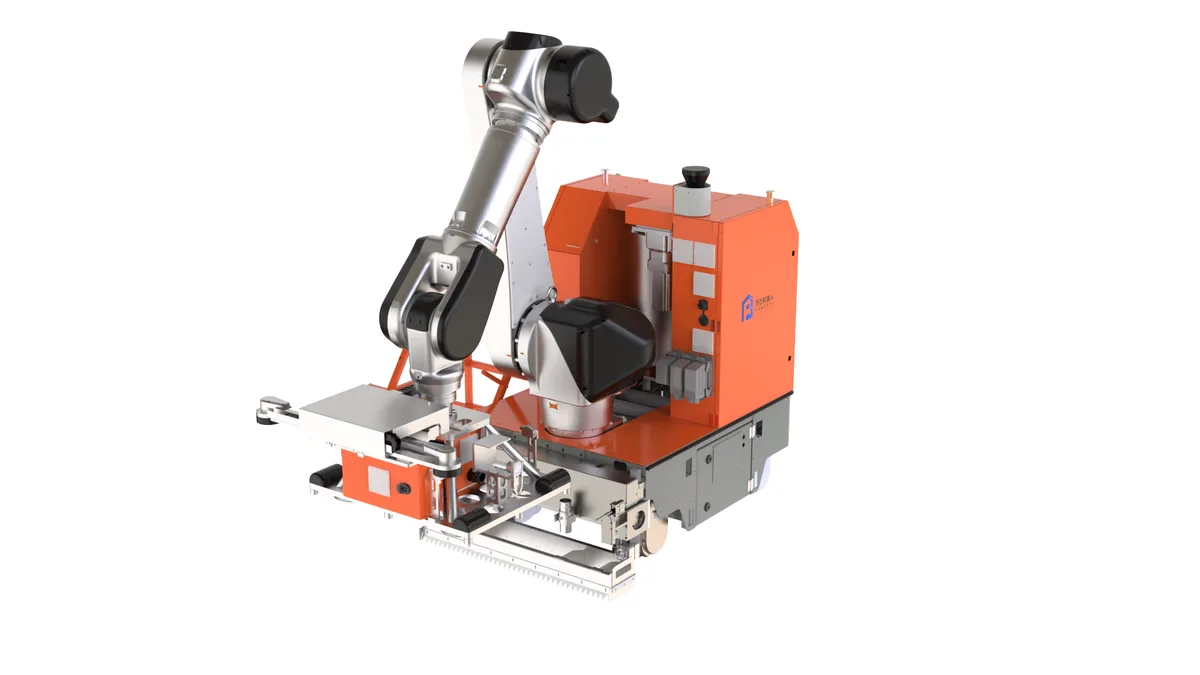

Wheeled robot that spreads adhesive and sets ceramic floor tiles up to 750 x 1500 mm
- 2
- Deployments
How it works on your site
Beijing Fangshi Robotics' Ceramic Floor Tile Laying Robot is a large wheeled machine that spreads tile adhesive on a prepared floor, then picks ceramic tiles from an onboard rack and sets each one with an arm guided by a visual alignment system. It lays thin-bed floor tile up to 750 × 1500 mm and 47.5 kg per tile, and by Fangshi's own workflow the crew still wets and slurry-brushes the substrate, loads the map and work points, sets reference and elevation lines, mixes the adhesive, restocks tiles and moves the robot between zones. The robot is pre-commercial: Fangshi showed it as an in-development product in July 2025, and its only listed sites are two projects in China entered in April and August 2026, neither of which names a customer.
Tile Setting (Ceramic/Stone)
Image: Fangshi Robotics
Field outcomes
-
Image: Fangshi Robotics
Will it work on your site
- Travel Speed
- 42 m/minTravel speed, not a laying rate
- Max Tile Weight
- 47.5 kg per tileTile limit, not an arm payload rating
- Supported Tile Sizes
- 800 × 800, 600 × 1200, 750 × 1500 mmBrochure range: 800 to 1500 × 600 to 800 mm
- Tile Thickness
- 10 mmOne case value, not a spec limit
As the maker states it.
