Image: Fangshi RoboticsConcrete Screeding Robot - Compact
Remote-controlled battery screed that levels fresh concrete slabs to a laser reference, 1.5 m wide
- 0
- Deployments
- 0
- Companies that ran it
How it works on your site

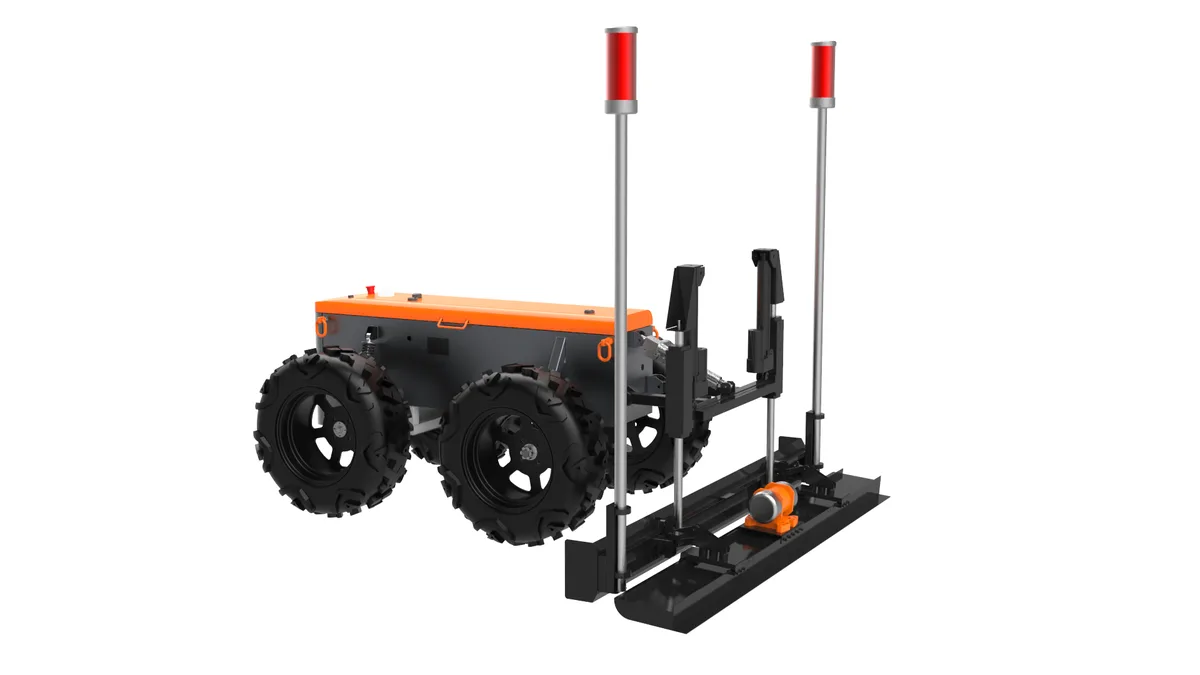

Fangshi Robotics' Concrete Screeding Robot - Compact is a battery-electric, remote-controlled wheeled screed that levels freshly placed concrete slabs to a site laser reference across a 1.5 m leveling width, with Fangshi stating 200–300 m²/h. It screeds and compacts only; in Fangshi's own floor workflow a crew places the concrete ahead of it and separate machines do the smoothing and troweling. Product status is unknown.
Screeding and Leveling
Image: Fangshi Robotics
Will it work on your site
- Site Preparation
- Site laser transmitter set up before screedingDistribution crew places concrete ahead (vendor crew model)
- Control Interface
- Remote control, device type not stated200 m range (spec table)
- BIM/CAD Requirements
- No BIM or CAD input statedLevelling follows the site laser reference plane
- Operating Weight
- 235 kg1680×1500×1660 mm overall; axis order not stated
As the maker states it.
