ACR Robot 557 H
Radio-controlled hydrodemolition robot that strips concrete from decks and other horizontal surfaces
- 0
- Deployments
- 0
- Companies that ran it
How it works on your site

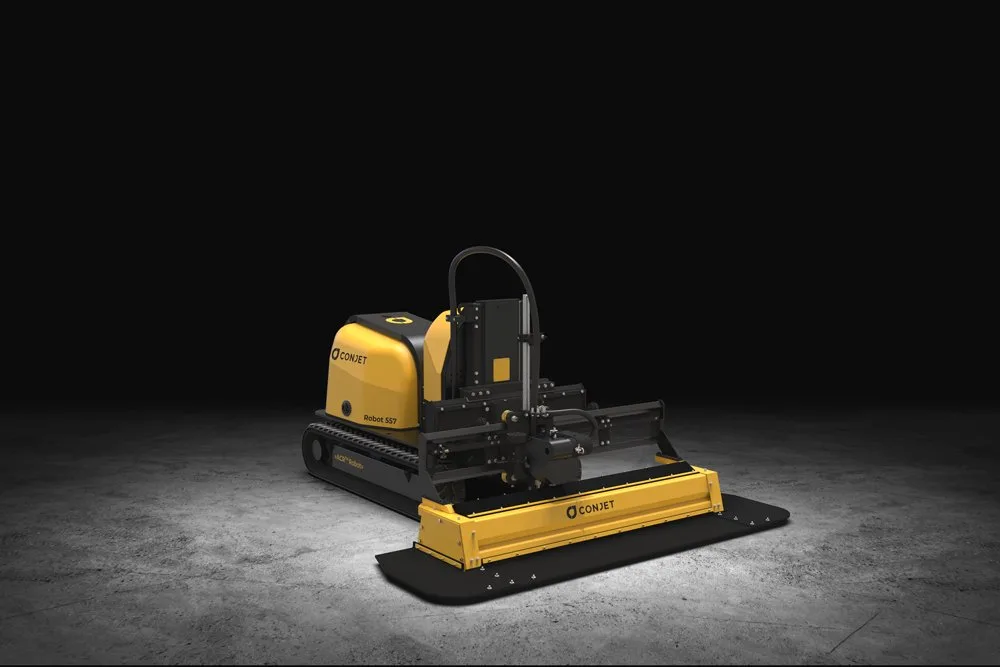

The ACR Robot 557 H is a tracked, radio-controlled hydrodemolition robot from Conjet AB that removes concrete with high-pressure water jets fed by a separate high-pressure pump. It is the horizontal variant of Conjet's 7-Series ACR range, built for concrete removal and repair on bridge decks, parking garages, highways, quays and docks, while the 557 MPA takes vertical and overhead work. The 557 H is shipping.
Concrete Removal and Repair
The 557 H runs over horizontal concrete and cuts with a high-pressure water jet, stripping damaged concrete while the reinforcement stays in place and hidden weak pockets come to light. On uneven ground beside a structure, the robot works from alongside the member instead of riding on top of it. The crew sets it up next to a separate high-pressure pump that feeds the jet.
Will it work on your site
- Power
- Diesel 18.7 kW or 3-phase electric3x380-480 VAC 32 A or 3x200 VAC 63 A
- Control interface
- Conjet ONE radio remote, mirrored colour displayGUI 7.0; also runs from the onboard display
- Pre-job inputs
- No BIM or CAD requirement statedOperator sets pass parameters on the remote
- Fleet management
- Conjet Connect cloud monitoringGPS, hours, alarms, fuel level, pressures, status
As the maker states it.
